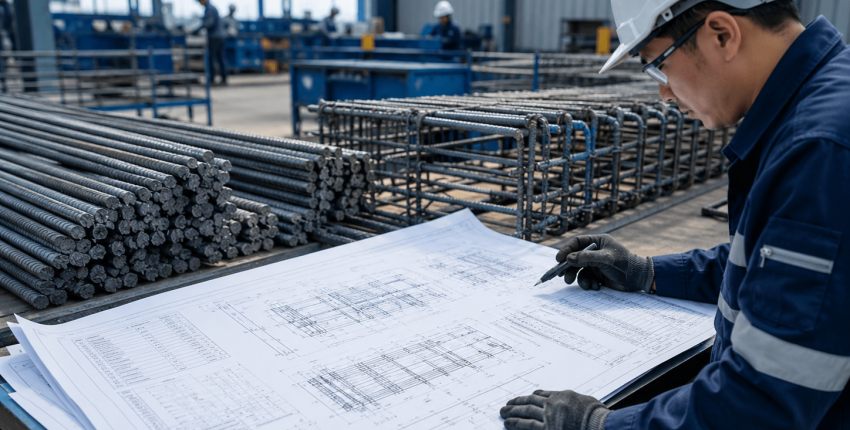

Rebar Fabrication Workflow: From BBS to Site Delivery

Quick Answer

A rebar fabrication workflow connects approved reinforcement drawings and bar bending schedules (BBS) to cutting, bending, labeling, staging, delivery, and site placement. The workflow should keep each operational step traceable to the current drawing and schedule revision.

The key is sequence. First confirm the approved drawings and BBS. Then plan cutting from available stock, prepare bars according to the required schedule data, identify each group clearly, and update the fabrication plan whenever the source documentation changes.

What Is a Rebar Fabrication Workflow?

A rebar fabrication workflow is the controlled process of turning documented reinforcement requirements into prepared bars for construction. It starts with approved drawings and schedules, then moves through cutting, bending, labeling, quality checks, staging, and delivery.

The workflow is broader than cutting alone. A fabricated bar is useful only when the team can trace it to the correct bar mark, diameter, shape, length, quantity, member reference, and current revision. This is why drawings, BBS reports, and fabrication records must stay connected.

Why Fabrication Starts with Documentation Quality

Fabrication cannot correct incomplete documentation. If a BBS does not match the drawing, if a bar mark is unclear, or if the schedule revision is outdated, the cutting and bending process may create bars that are unusable for the current project condition.

Before fabrication begins, check that the drawing package identifies the relevant members, bar marks, sections, cut-off information, and schedule references. The BBS should then provide the fabrication data for those same bar marks.

For a focused guide to schedule interpretation, read how to read a bar bending schedule.

The Main Stages of a Rebar Fabrication Workflow

1. Confirm the Current Drawing and BBS Revision

Start with the current issued reinforcement package. Confirm that drawings, BBS reports, cut-off information, quantities, and CAD outputs belong to the same revision. Do not fabricate from a schedule with pending or unreviewed drawing changes.

2. Group Bars by Mark and Requirement

Group requirements by bar mark, diameter, shape, length, quantity, and member or floor reference. This helps the fabrication team avoid mixing similar bar lengths that belong to different structural locations.

3. Plan Stock-Length Use

Compare the required bar lengths with the stock lengths actually available to the project. This supports the next stage: preparing a practical cutting plan that can be traced to the checked BBS.

4. Cut and Bend Bars

Cut and bend bars according to the approved schedule data and the project’s fabrication controls. Check the bar mark, diameter, shape, length, and quantity at the relevant quality-control points.

5. Label and Stage Fabricated Bars

Labels should preserve the project reference and bar information needed for delivery and placement. Staging should make it easy to separate bars by area, floor, member group, or delivery sequence without losing traceability.

6. Deliver and Confirm on Site

Before bars are placed, site teams should verify that the delivered bars match the current drawing package, relevant bar marks, and member references. Questions should be resolved against the issued documentation rather than memory or informal notes.

Rebar Fabrication Workflow vs. Rebar Cutting Optimization

For the software category focused on cutting patterns, read rebar cutting optimization software. For the operational planning document, read rebar cutting plans.

How Rebar Drawings, BBS, and Cutting Plans Work Together

Each document has a different role. The drawing shows where the bars belong. The BBS identifies what must be fabricated. The cutting plan organizes how stock material can be prepared to meet the BBS requirements. A reliable workflow maintains a clear link across all three.

How SIDA Tools Fit the Workflow

SIDA Concrete documents outputs including detailed beam and column drawings, reinforcement layout plans, project-wide and member-based BBS reports, cut-off tables, steel-wastage reporting, and DWG/DXF exports.

SIDA Floor documents slab-strip reinforcement detailing, detailed bar schedules, reinforcement-quantity calculation, and editable AutoCAD-ready drawing output. SIDA Foundation lists detailed bar-schedule export in Excel and DWG formats for isolated, strip, and mat foundation workflows.

SIDA Cut Optimizer supports the separate cutting-planning stage by importing project bar schedules from Excel or CAD files and calculating cutting patterns. The schedule should be checked before it is used as cutting input; this is not a claim of direct automatic transfer from the detailing modules.

Fabrication Handoff and Delivery Records

Before a fabricated group leaves the yard or staging area, confirm that its labels and delivery record preserve the relevant bar marks, quantities, area or floor references, and current revision. This does not require a complicated system, but it does require a clear way to confirm what has been prepared, what has been dispatched, and what remains linked to the active BBS.

When delivery is organized by construction sequence, preserve the drawing reference as well as the delivery group. This helps site teams identify both when the bar group is needed and where it belongs in the current reinforcement package.

Fabrication Quality-Control Checklist

• Confirm the current drawing and BBS revision before fabrication starts.
• Check bar marks, diameters, shapes, lengths, quantities, and member references.
• Verify cutting-plan assumptions against actual stock lengths and operational conditions.
• Preserve labels and source references through cutting, bending, staging, and delivery.
• Check fabricated bar groups against the relevant drawings and schedule entries.
• Review the impact of any drawing or BBS revision before continuing production.

Common Rebar Fabrication Workflow Mistakes

Starting from an Outdated BBS

A schedule may be technically correct for an earlier drawing issue but unusable for the current project. Revision control must be checked before fabrication begins.

Separating Labels from Bar Marks

Fabricated bars become difficult to manage when labels do not preserve the source bar mark and project reference. Keep identification readable from the shop to the site.

Using a Cutting Plan as an Engineering Document

A cutting plan supports production. It does not replace the drawing, BBS, code review, constructability review, or final engineering approval.

Ignoring Site Delivery Sequence

Fabrication should consider how bars will be staged and delivered. A correct bar group can still create site confusion when it arrives without clear references or in an unmanageable sequence.

Frequently Asked Questions

What is a rebar fabrication workflow?

It is the process that moves from approved reinforcement drawings and BBS data through cutting, bending, labeling, staging, delivery, and site confirmation.

Does a BBS replace a cutting plan?

No. A BBS defines the required bars. A cutting plan uses the required lengths and available stock information to organize operational cutting patterns.

Can SIDA Cut Optimizer support rebar fabrication?

It supports the cutting-planning stage by importing compatible Excel or CAD schedule files and calculating cutting patterns. Fabrication still requires checked BBS data, practical controls, and operational review.

Why are rebar labels important?

Labels keep fabricated bars traceable to their bar marks, lengths, quantities, and project references during staging, delivery, and placement.

Final Thoughts

A reliable rebar fabrication workflow begins with correct documentation and preserves traceability all the way to site placement. When drawings, BBS reports, cutting plans, labels, and revisions stay aligned, the team has a clearer basis for fabrication control.

Explore SIDA Cut Optimizer for Excel- and CAD-based schedule input and cutting-pattern calculation within a controlled fabrication-planning workflow.
