The use of piles in building foundations is widely recognized as a common and reliable solution in the construction industry. Based on project requirements and site-specific soil conditions, structural engineers and designers can decide to utilize piles instead of other methods such as vertical supports or deep foundations.

Using piles in foundation systems offers significant advantages, including improved structural stability, reduction of excessive settlement, high load-transfer capacity, and minimizing the required footprint for foundation construction. Due to these benefits, pile foundations have become widely adopted in the construction field and are considered an effective and practical approach.

Key Features

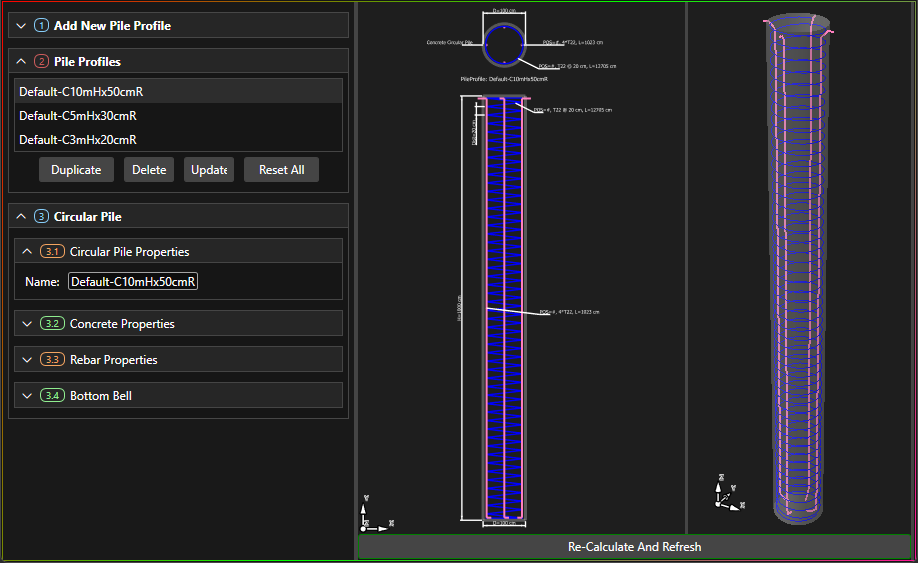

• Drafting piles with fully customizable details defined by the user

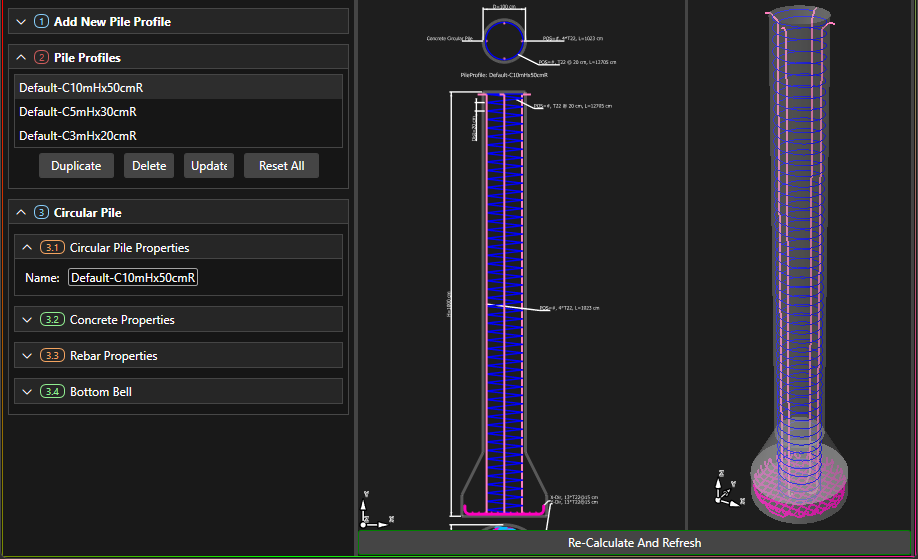

• Ability to draw under-reamed piles (bell piles) with user-specified dimensions
• Assigning the drawn piles to user-selected coordinates within the project
• Section drafting with full reinforcement and geometric detailing

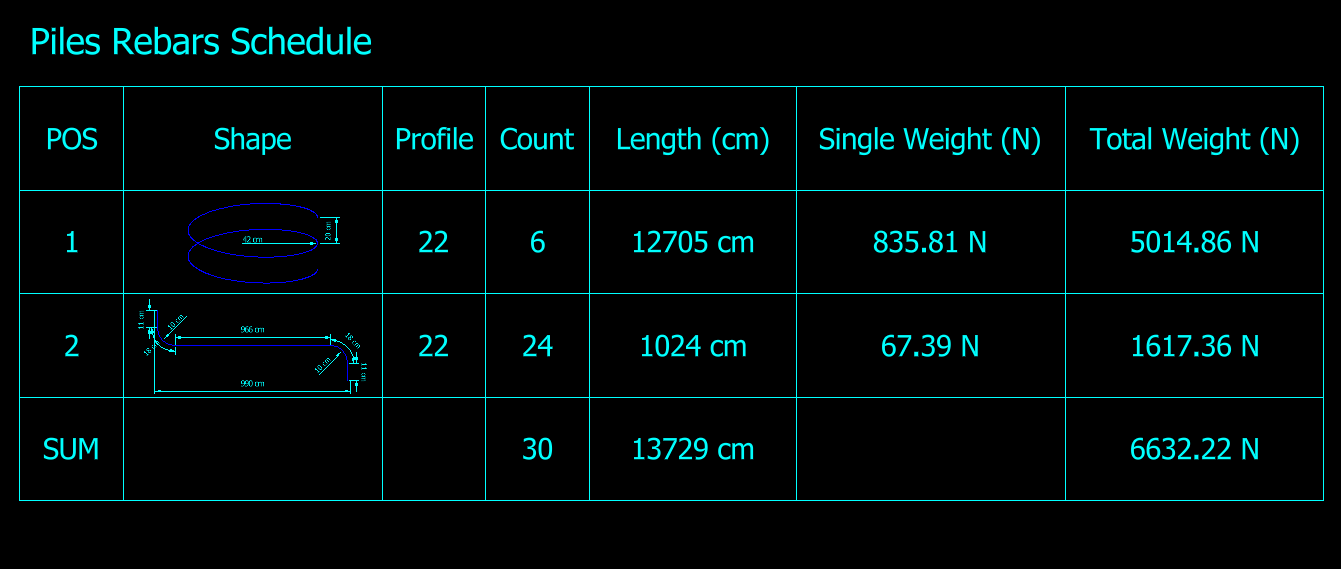

• Generating complete drawing outputs, including 3D pile drawings

• Advanced and intuitive graphical environment
• High processing speed during operation
• Customizable user interface

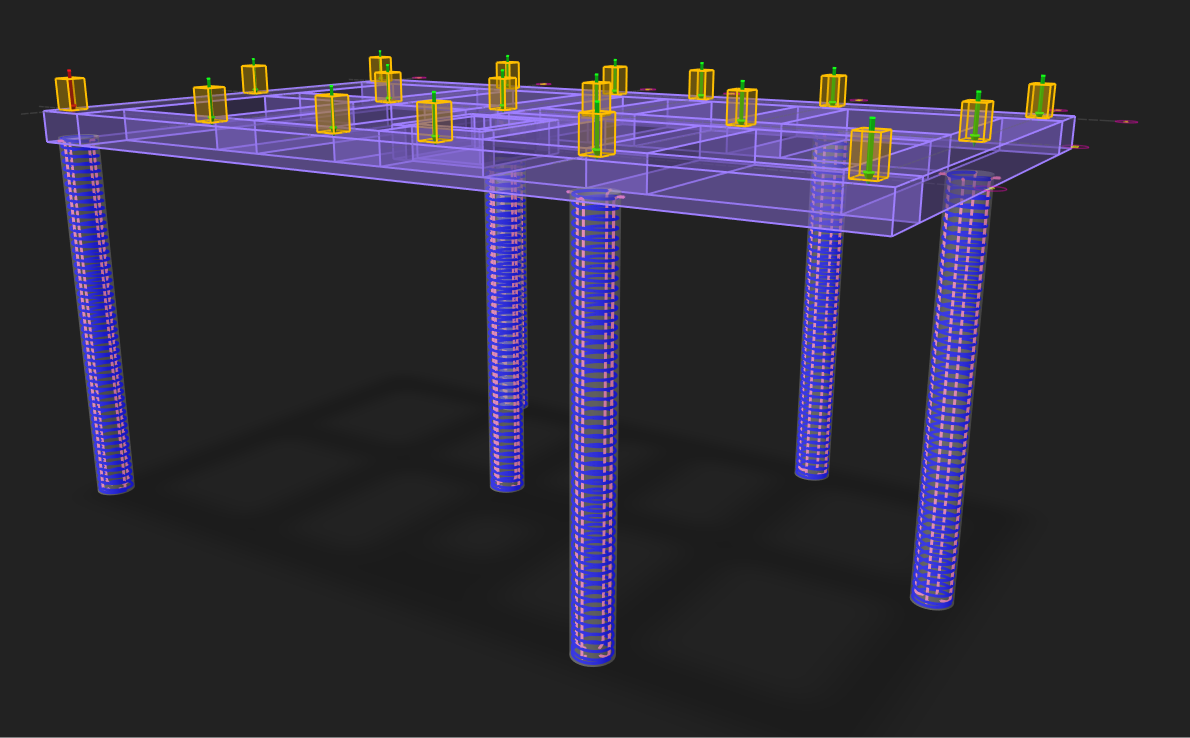

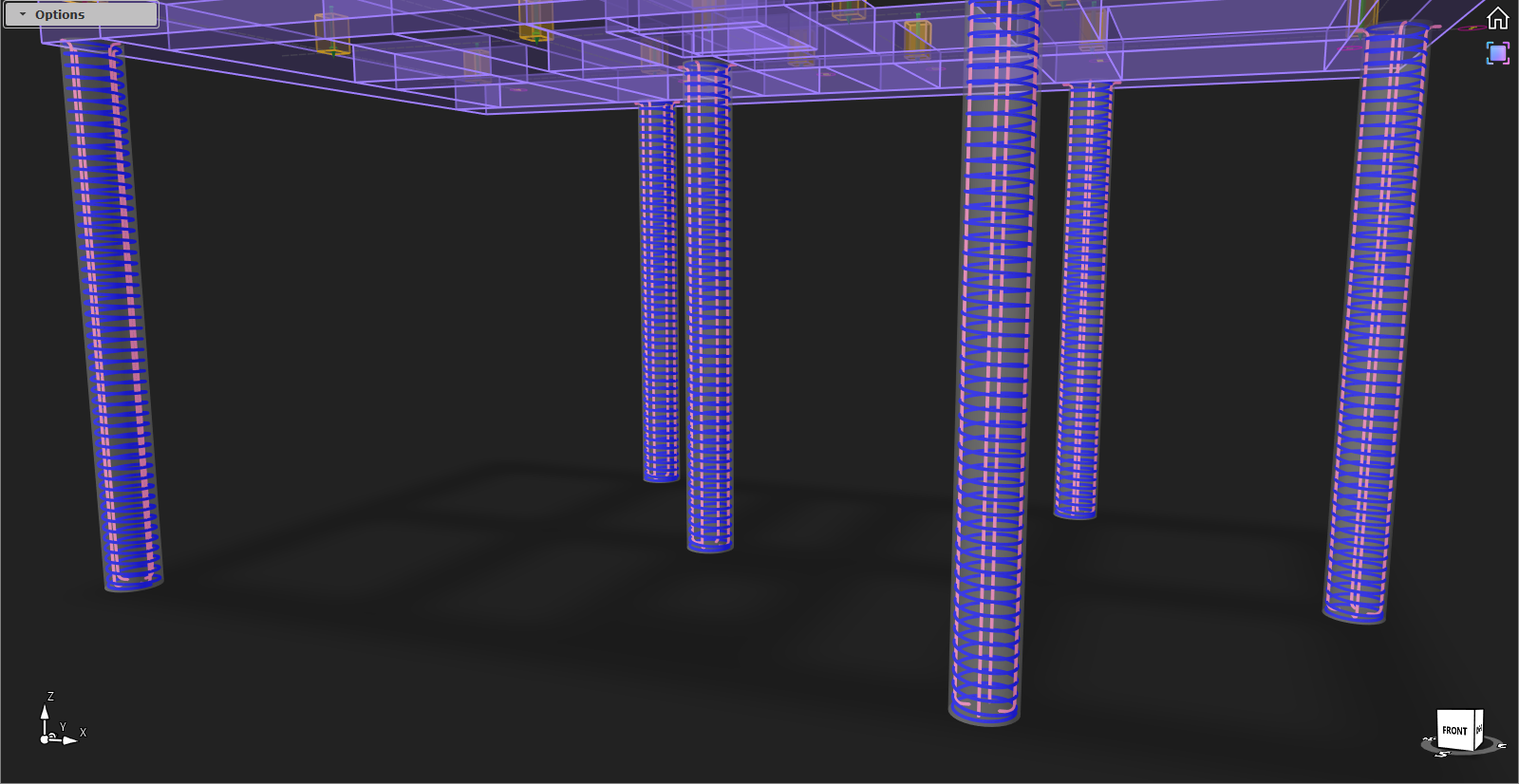

• 3D visualization of the model with all details included
• Ability to capture high-quality snapshots of the project
